| Specifications & technical Data | |

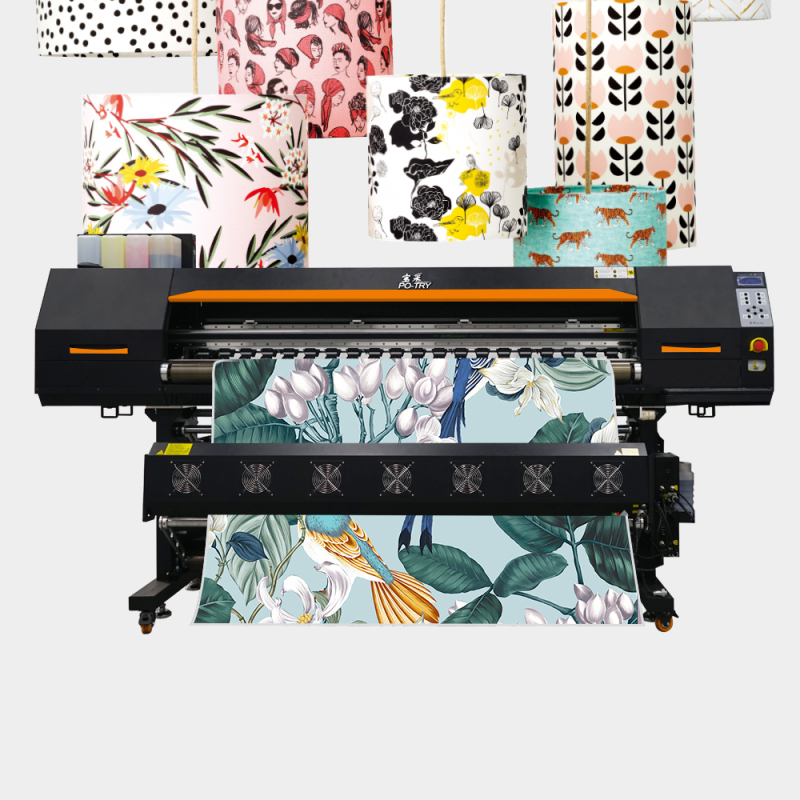

| Model number | BC-1908i-HT |
| Print head | EPSON i3200 |
| Number of Print heads | 8 |
| Print resolution/speed | 1Pass 360*1200DPI 300㎡/H |
| 2Pass 360*2400DPI 150㎡/H | |
| Print Width | 1900mm |
| Ink Type | Sublimation Ink |
| Ink Capacity | 4*5L |
| Color | K C M Y |
| Print Media optional | Heat-Transfer printing Paper |
| Max Medium Weight | 80KGS |
| RIP software | Maintop 6.0 / Wasatch / Neostampa (optional) |
| Computer System | Win 7 64bit |
| Computer configuration Reference | Hard disk: 500G / 1T, ATI independent video card, Gigabit network card, 4G or 8G memory, Intel quad-core i5 or i7 CPU processor. |
| File format | TIF |
| Work environment | Temperature: 18 -28℃, Humidity: 40%-60%. |
| Rolling system | Automatic Feeding and Collecting roll Paper or Textiles. |
| Drying system | Automatic surface drying |
| Power Supply | AC220V ± 10%. 50/60 ± 1Hz（AC110V ± 10%. Optional） |
| Power（Watt） | 6500W, 220V-240V, 50-60HZ |
| Advanced Feature | Automatic cleaning; Automatic Alarming System for Empty Ink Supply; Automatic flash spray moisturizing function. |
| Machine Size | L2800mm*W1300mm*H1600mm |
| Outer Box Size | L3350mm*W780*1010mm + L2540mm*W1300mm*H850mm ( two wooden boxes) |
| Net Weight | 435KGS |
| Gross Weight | 655KGS |
 |
 |
 |
 |
 |
 |
