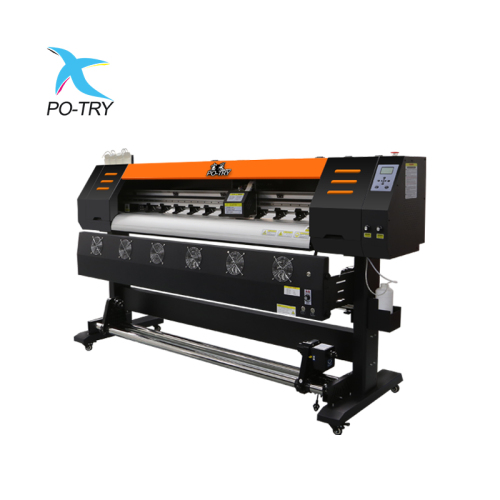

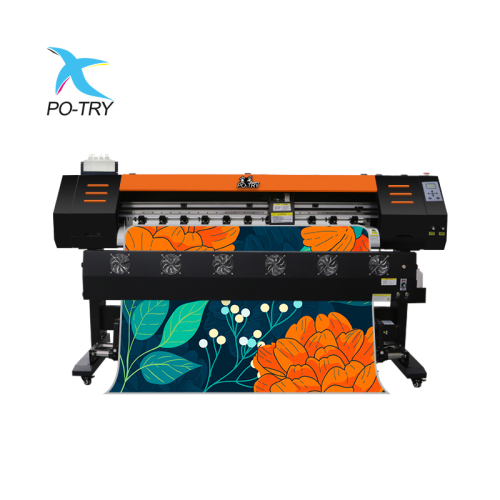

| Model number | HT-1904IA |
| Printhead | EPSON i3200-A1/4720 |
| Attribute of Printhead | Automatic cleaning and flash spray wetting function |
| Number of Print heads | 4 |
| Print resolution/speed | 2Pass 360*1200DPI 182.1m²/H |
| 4Pass 360*2400DPI 95m²/H |
|
| Print Width | 1900mm |
| Ink Type | Sublimation Ink |
| Ink Capacity | 4*1.5L |
| Ink Supply System | Siphon Ink Supply |
| Precision Mode | VSD Variable point model VSD |
| Color | K C M Y |
| Print Media optional | Heat-Transfer printing Paper |
| Max Medium Weight | 30KGS |
| RIP software | Maintop6.0、photoprint、ONYX、NeoStampa ( Standard configuration Maintop6.0 ) |
| Computer System | Win7 64bit / Win10 64bit |
| Computer configuration Reference | Hard disk: Over 500G ( Solid state drive is suggested ）， Running Memory:16G Graphics card: ATI independent video card,4G memory CPU processor： i7 Transmission interface: Gigabit network interface |
| File format | TIF,JPG,PDF |
| Work environment | Temperature: 18%-35%℃, Humidity: 35%-65% |
| Rolling system | Gas Barrier Shaft Automatic Feeding and Collecting roll Paper or Textiles. |
| Wetting mode | Fully sealed automatic wetting and cleaning |
| Drying system | External Drying system |
| Printer Standard configuration | Automatic Drying System,Ink Alarm System |
| Power Supply | AC220V ± 10%. 50/60 ± 1Hz(AC110V ± 10%. Optional) |
| Max Power(Watt) | Printing System:1200W Drying System:7200W |
| Language Of Operating System | Chinese & English |
| Machine Size | L3000mm*W900mm*H1770mm |
| Outer Box Size | L3050mm*W950mm*H1300mm |
| Gas Barrier Shaft Size | L3180mm*W1030mm*H1060mm |
| Net Weight | 320KGS |
| Gross Weight | 380KGS |
