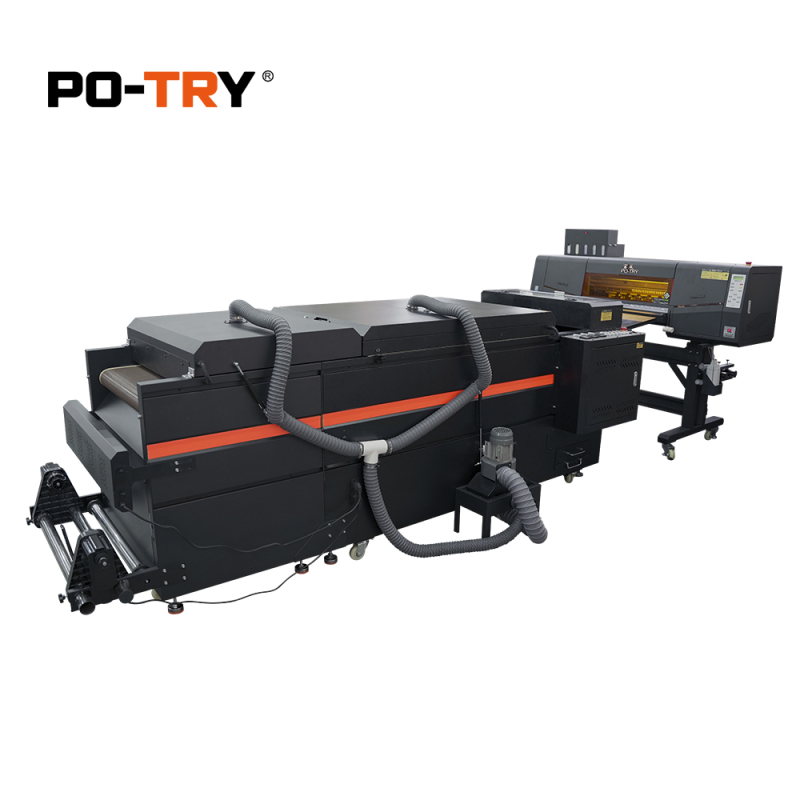

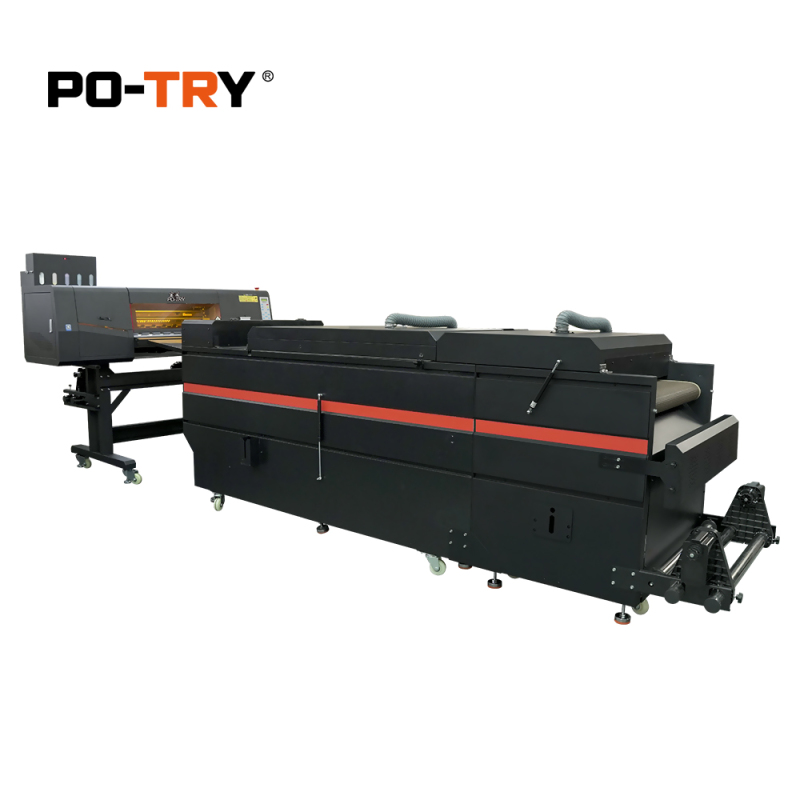

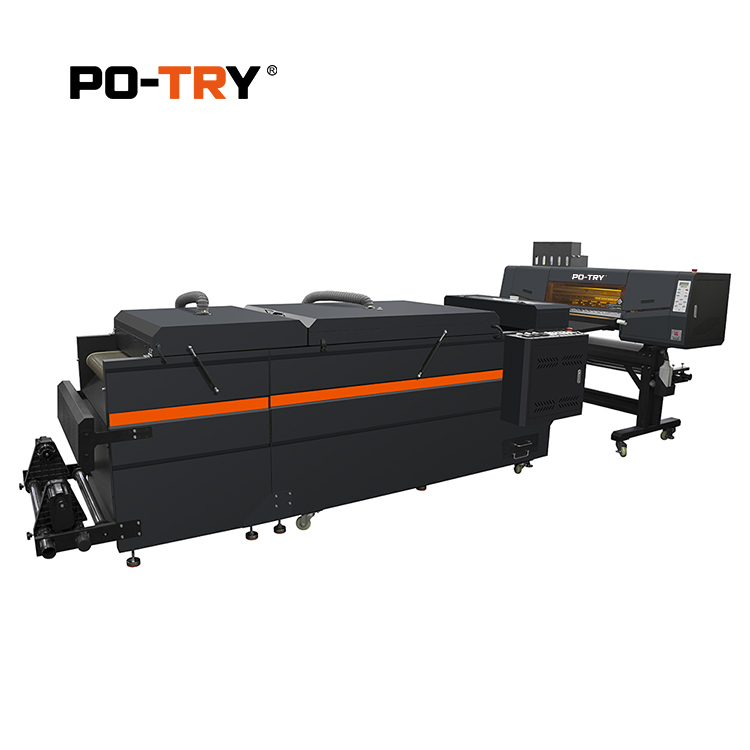

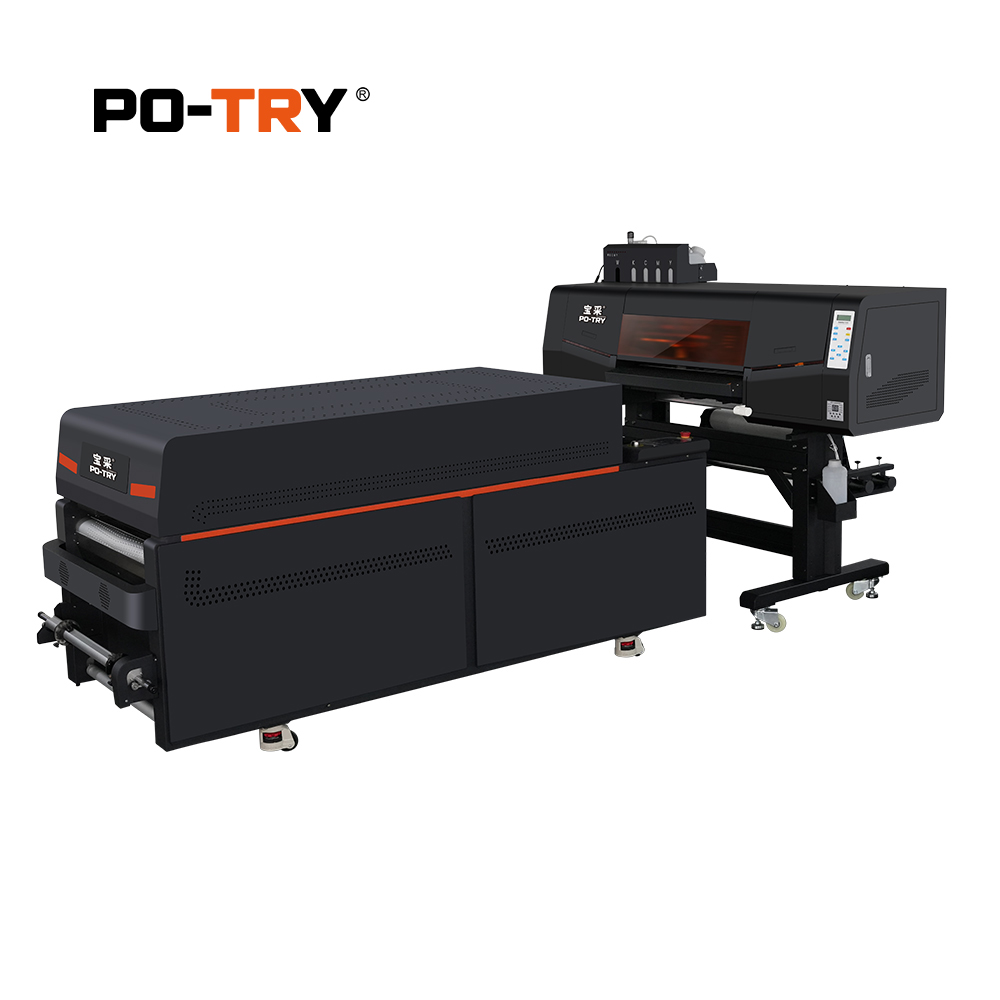

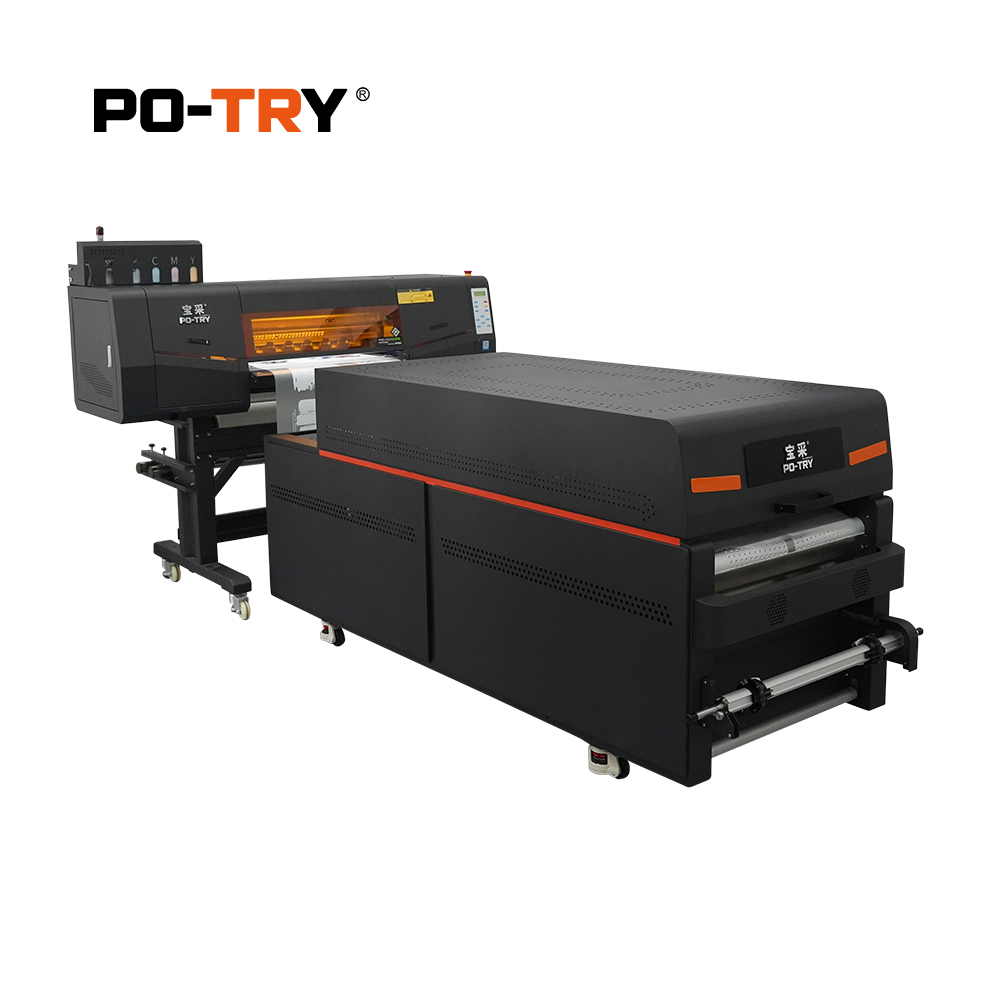

| Model | HT-0605IA-01 |
| Printhead Type | EPSON I3200-A1 |
| Printhead Quantity | 5 |
| Printhead Quantity | 6pass: 27㎡/H-32㎡/H |
| Printing Width6 | 600mm |
| Ink Type | Pigment Ink |
| Ink Capacity | 5*1.5L |
| File Format | TIF |
| Color Mode | K C M Y W |
| Working Condition | Temperature: 20℃-28℃, Humidity: 40%-60% |
| Take Up System | Dual power take up system |
| Take Up & Drying System | Powder shaker integrated system for taking up and drying |
| Printing Interface | Network interface |
| RIP Software | Maintop 6.1 / PO-TRY RIP / Photoprint / CADlink |
| PC Requirements | W7 or above, 64 bit, CPU Processor i5 or above, 8G Storage, C disk with solid state hard drive 120G or above,Attached disk 1TB, Gigabit Ethernet port |
| Input Voltage | AC100V ~120V（Advance customization），AC220V ~250V，50/60 Hz |
| Power Consumption | Printer : 1000W |
| Powder Shaker : 7200W | |

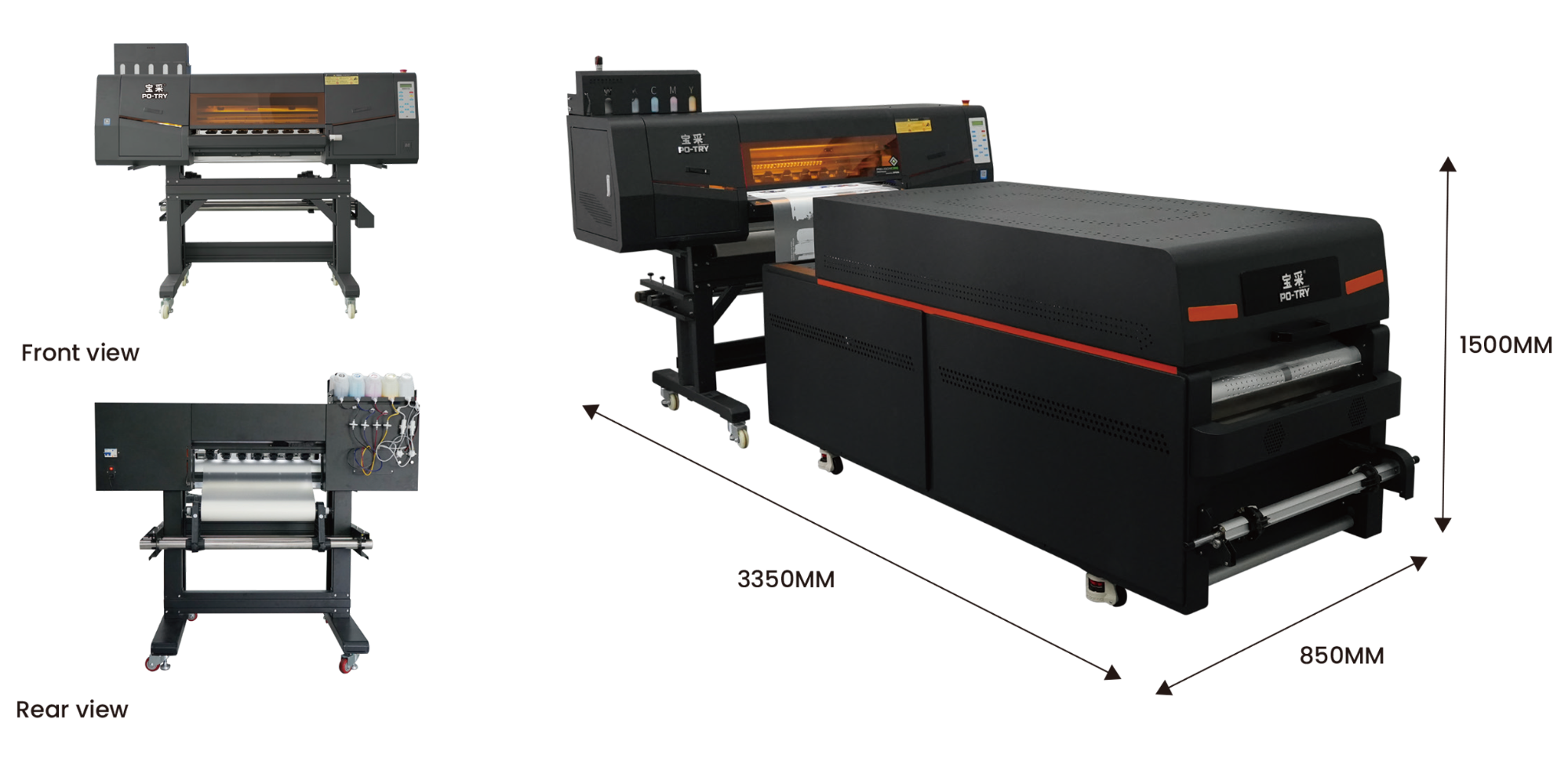

| Printer Size | Printer : L1750mm*w790mm*H1500mm |
| Powder Shaker : L3600mm*w1060mm*H1060mm | |
| Net Weight | Printer : 164KG |
| Powder shaker : 355KG |

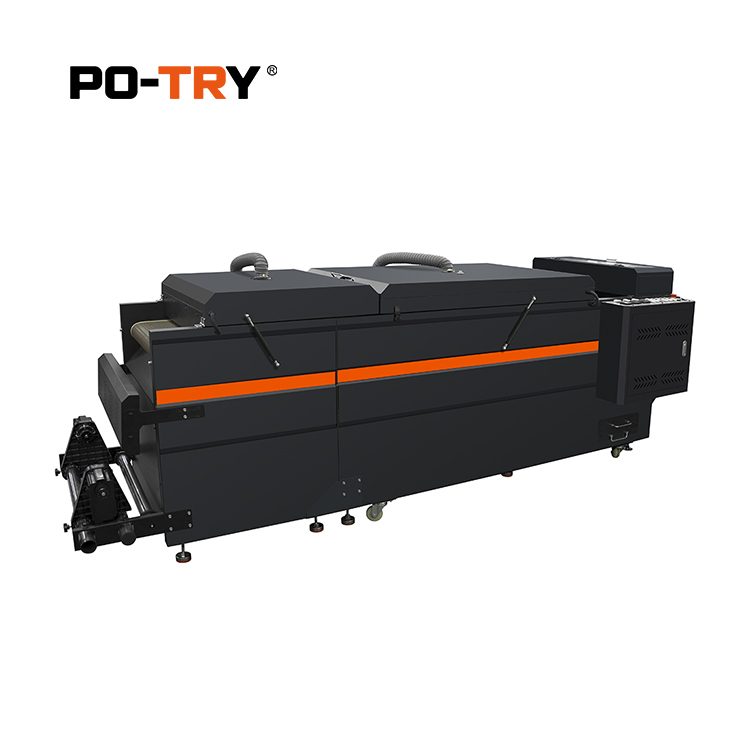

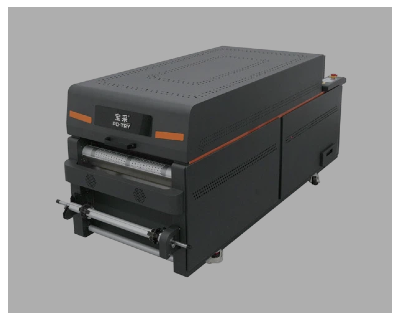

| Model | PS-0619-01 |
| Input Voltage | AC220V ± 10%. 50 / 60 ± 1Hz (If using 110V voltage, please use it with a 110V to 220V transformer) |
| Power Consumption | 7.5KW |
| Receiving system | Dual power receiving system |
| Printer Size | L1900mm*W780mm |
| Powder Shaker | L3600mm*W1060mm*H1060mm |
| Net Weight | 355KG |
| Compatible printers | HT-0605IA-01 |

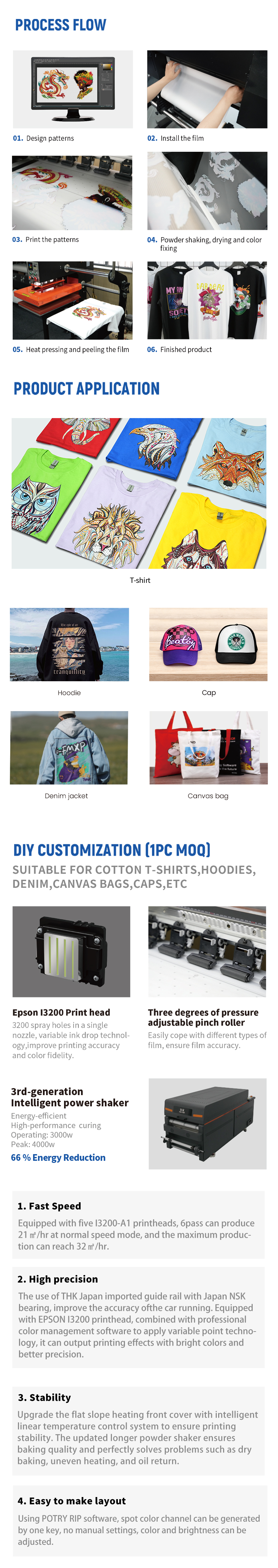

1. Fast Speed
Equipped with five 13200-A1 printheads, 6pass can produce 27㎡/hr at normal speed mode, and the maximum production can reach 32㎡/hr .
2. High precision
The use of THK Japan imported guide rail with Japan NSK bearing, improve the accuracy of the car running.
Equipped with EPSON I3200 printhead, combined with professional color management software to apply variable point technology, it can output printing effects with bright colors and better precision.
3. Stability
Upgrade the flat slope heating front cover with intelligent linear temperature control system to ensure printing stability.
The updated longer powder shaker ensures baking quality and perfectly solves problems such as dry baking, uneven heating, and oil return.
4. Easy to make layout
Using PO-TRY RIP software, spot color channel can be generated by one key, no manual settings, color and brightness can be adjusted.
