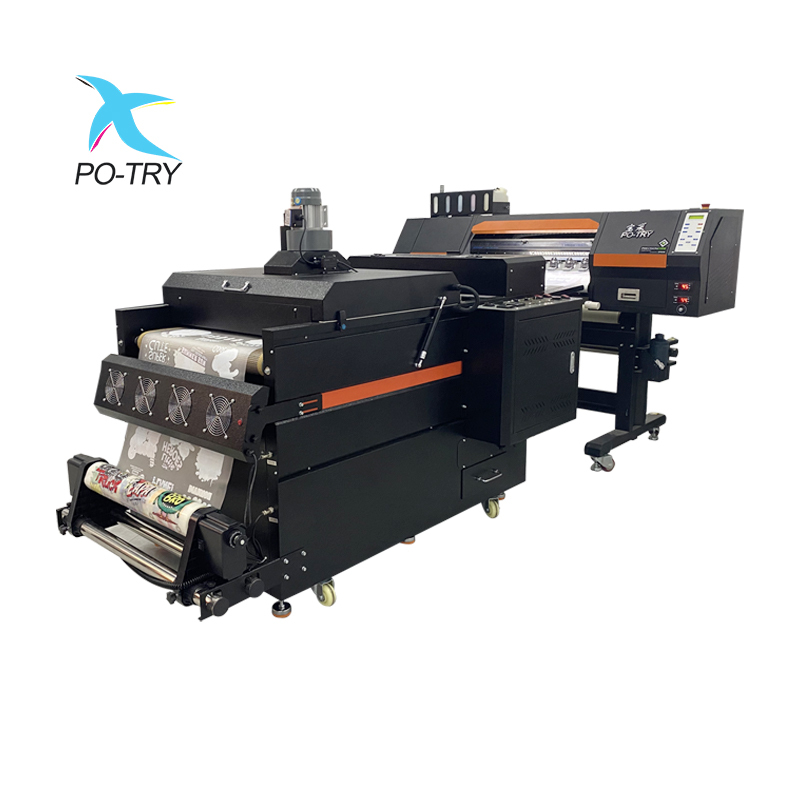

DTF Printer
| Specification & Technical Data | ||
| Model Number | HT-0602IA-02 | |
| Printhead | EPSON i3200 | |
| Number of Printheads | 2 | |
| Print Resolution /Speed | 4pass:16m²/H | |
| 6pass:8m²/H | ||
| Print Width | 600mm | |
| Ink Type | Water-based pigment ink, white ink | |
| Ink Capacity | 5*2L | |
| Precision Mode | VSD 3 | |
| Color | K C M Y W | |
| Work Environment | Temperature: 15℃-28℃; Relative Humidity: 40%-60% |
|
| Rolling System | Automatic | |
| Drying System | External Drying system | |
| Print Interface | USB3.O/ Network Interface | |
| RIP Software | Maintop 6.1 / Photoprint/，CADlink | |
| Power Supply | AC110V ± 10%.AC220V ± 10%.50/60 ± 1Hz | |
| Max Power (Watt) | 2000W | |
| Cleaning Air Machine Size | L500mm*W490mm*H1010mm | |
| Printer Size | L1740mm*W800mm*H1390mm | |
| Printer Outer Box Size | L1880mm*W830mm*H630mm | |
| Powder Dryer Machine size | L1660mm*W1090mm*H1140mm | |
| Powder Dryer Machine Outer Box Size | L1950mm*W1120mm*H1130mm | |
| Net Weight | 150KG ( printer weight) | |
| Gross Weight | 197KG( printer weight) | |
